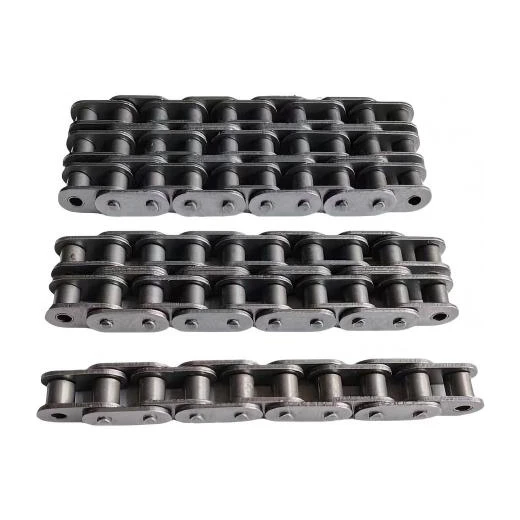

Roller Chains with Straight Side Plates
Short pitch precision roller chain are widely used in engineering machinery, agricultural machinery and otherields, transmitting power for all kinds of machinery and facilities, mainly including A series short pitch precision roller chain, B series short pitch precision roller chain, heavy load series roller chain and other series. Using high-quality materials including carbon steel and stainless steel.
Send Inquiry
Product Introduction
Product Introduction
Short pitch precision roller chain are widely used in engineering machinery, agricultural machinery and otherields, transmitting power for all kinds of machinery and facilities, mainly including A series short pitch precision roller chain, B series short pitch precision roller chain, heavy load series roller chain and other series. Using high-quality materials including carbon steel and stainless steel.
Technical Data
Roller chains with straight side plates (A series)
| Newball Chain No. |
Pitch | Width between inner plates |
Roller diameter |
Pin dimension | Inner plate depth |
plate thickness |
Transverse pitch |
Ultimate tensile strength |
Average tensile strength |
Weight per meter |
|||
| P | b1 | d1 | d2 | L | LC | h2 | t/T | Pt | Qmin | Qo | q≈ | ||
| mm | KN | Kg/m | |||||||||||
| C08A-1 | C40-1 | 12.7 | 7.85 | 7.95 | 3.96 | 16.6 | 18.8 | 12 | 1.5 | - | 14.1 | 17.5 | 0.73 |
| C10A-1 | C50-1 | 15.875 | 9.40 | 10.16 | 5.08 | 20.7 | 23.3 | 15.09 | 2.00 | - | 22.2 | 29.4 | 1.23 |
| C12A-1 | C60-1 | 19.05 | 12.57 | 11.91 | 5.94 | 25.9 | 28.3 | 18 | 2.40 | - | 31.8 | 41.5 | 1.83 |
| C16A-1 | C80-1 | 25.4 | 15.75 | 15.88 | 7.92 | 32.7 | 36.5 | 24 | 3.20 | - | 56.7 | 69.4 | 3.09 |
| C20A-1 | C100-1 | 31.75 | 18.90 | 19.05 | 9.53 | 40.4 | 44.7 | 30 | 4.00 | - | 88.5 | 109.2 | 4.56 |
| C24A-1 | C120-1 | 38.1 | 25.22 | 22.23 | 11.1 | 50.3 | 54.3 | 35.7 | 4.8 | - | 127.0 | 156.3 | 6.86 |
| C28A-1 | C140-1 | 44.45 | 25.22 | 25.40 | 12.7 | 54.4 | 59.0 | 41 | 5.6 | - | 172.4 | 212.0 | 8.49 |
| C32A-1 | C160-1 | 50.8 | 31.55 | 28.58 | 14.27 | 64.8 | 69.6 | 47.8 | 6.4 | - | 226.8 | 278.9 | 11.50 |
| C08A-2 | C40-2 | 12.7 | 7.85 | 7.95 | 3.96 | 31.0 | 33.2 | 12 | 1.5 | 14.38 | 28.2 | 35.9 | 1.43 |
| C10A-2 | C50-2 | 15.875 | 9.40 | 10.16 | 5.08 | 38.9 | 41.4 | 15.09 | 2.00 | 18.11 | 44.4 | 58.1 | 2.42 |
| C12A-2 | C60-2 | 19.05 | 12.57 | 11.91 | 5.94 | 48.8 | 51.1 | 18 | 2.40 | 22.78 | 63.6 | 82.1 | 3.62 |
| C16A-2 | C80-2 | 25.4 | 15.75 | 15.88 | 7.92 | 62.7 | 65.8 | 24 | 3.20 | 29.29 | 113.4 | 141.8 | 6.12 |
| C20A-2 | C100-2 | 31.75 | 18.90 | 19.05 | 9.53 | 76.4 | 80.5 | 30 | 4.00 | 35.76 | 177.0 | 219.4 | 9.08 |
| C24A-2 | C120-2 | 38.1 | 25.22 | 22.23 | 11.1 | 95.8 | 99.7 | 35.7 | 4.8 | 45.44 | 254.0 | 314.9 | 13.60 |
| C28A-2 | C140-2 | 44.45 | 25.22 | 25.40 | 12.7 | 103.3 | 107.9 | 41 | 5.6 | 48.87 | 344.8 | 427.5 | 16.86 |
| C32A-2 | C160-2 | 50.8 | 31.55 | 28.58 | 14.27 | 123.3 | 128.1 | 47.8 | 6.4 | 58.55 | 453.6 | 562.4 | 22.90 |
| C08A-3 | C40-3 | 12.7 | 7.85 | 7.95 | 3.96 | 45.4 | 47.6 | 12 | 1.5 | 14.38 | 42.3 | 50.0 | 2.14 |
| C10A-3 | C50-3 | 15.875 | 9.40 | 10.16 | 5.08 | 57 | 59.5 | 15.09 | 2.00 | 18.11 | 66.6 | 77.8 | 3.62 |
| C12A-3 | C60-3 | 19.05 | 12.57 | 11.91 | 5.94 | 71.5 | 73.9 | 18 | 2.40 | 22.78 | 95.4 | 111.1 | 5.41 |
| C16A-3 | C80-3 | 25.4 | 15.75 | 15.88 | 7.92 | 91.7 | 95.1 | 24 | 3.20 | 29.29 | 170.1 | 198.4 | 9.10 |
| C20A-3 | C100-3 | 31.75 | 18.90 | 19.05 | 9.53 | 112.2 | 116.3 | 30 | 4.00 | 35.76 | 265.5 | 309.6 | 13.60 |
| C24A-3 | C120-3 | 38.1 | 25.22 | 22.23 | 11.1 | 141.4 | 145.2 | 35.7 | 4.8 | 45.44 | 381.0 | 437.2 | 20.43 |
| C28A-3 | C140-3 | 44.45 | 25.22 | 25.40 | 12.7 | 152.2 | 156.8 | 41 | 5.6 | 48.87 | 517.2 | 593.3 | 25.23 |
| C32A-3 | C160-3 | 50.8 | 31.55 | 28.58 | 14.27 | 181.8 | 186.6 | 47.8 | 6.4 | 58.55 | 680.4 | 780.6 | 34.19 |
Roller chains with straight side plates (B series)
| Newball Chain No. |
Pitch | Width between inner plates |
Roller diameter |
Pin dimension | Inner plate depth |
plate thickness |
Transverse pitch |
Ultimate tensile strength |
Average tensile strength |
Weight per meter |
|||
| P | b1 | d1 | d2 | L | LC | h2 | t/T | Pt | Qmin | Qo | q≈ | ||
| mm | KN | Kg/m | |||||||||||
| C06B-1 | 9.525 | 5.72 | 6.35 | 3.28 | 13.15 | 14.1 | 8.2 | 1.30 | - | 8.9 | 10.3 | 0.41 | |
| C08B-1 | 12.7 | 7.75 | 8.51 | 4.45 | 16.7 | 18.2 | 11.8 | 1.60 | - | 18.0 | 19.5 | 0.80 | |
| C10B-1 | 15.875 | 9.65 | 10.16 | 5.08 | 19.5 | 20.9 | 14.7 | 1.70 | - | 22.4 | 27.9 | 1.06 | |
| C12B-1 | 19.05 | 11.68 | 12.07 | 5.72 | 22.5 | 25.2 | 16 | 1.8 | - | 29.0 | 32.2 | 1.32 | |
| C16B-1 | 25.4 | 17.02 | 15.88 | 8.28 | 36.1 | 37.4 | 21 | 4/3 | - | 60.0 | 72.8 | 3.08 | |
| C20B-1 | 31.75 | 19.56 | 19.05 | 10.19 | 41.3 | 45.0 | 26.4 | 4.5/3.5 | - | 95.0 | 106.7 | 4.16 | |
| C24B-1 | 38.1 | 25.40 | 25.40 | 14.63 | 53.4 | 57.8 | 33.2 | 6/4.8 | - | 160.0 | 178.0 | 7.47 | |
| C28B-1 | 44.45 | 30.99 | 27.94 | 15.9 | 65.1 | 69.5 | 36.7 | 7.5/6 | - | 200.0 | 222.0 | 9.90 | |
| C32B-1 | 50.8 | 30.99 | 29.21 | 17.81 | 66 | 71.0 | 42 | 7/6 | - | 250.0 | 277.5 | 10.45 | |
| C06B-2 | 9.525 | 5.72 | 6.35 | 3.28 | 23.4 | 24.4 | 8.2 | 1.30 | 10.24 | 16.9 | 18.7 | 0.77 | |
| C08B-2 | 12.7 | 7.75 | 8.51 | 4.45 | 31.2 | 32.2 | 11.8 | 1.60 | 13.92 | 32.0 | 38.7 | 1.45 | |
| C10B-2 | 15.875 | 9.65 | 10.16 | 5.08 | 36.1 | 37.5 | 14.7 | 1.70 | 16.59 | 44.5 | 57.8 | 2.00 | |
| C12B-2 | 19.05 | 11.68 | 12.07 | 5.72 | 42.0 | 44.7 | 16 | 1.8 | 19.46 | 57.8 | 66.1 | 2.62 | |
| C16B-2 | 25.4 | 17.02 | 15.88 | 8.28 | 68.0 | 71.0 | 21 | 4/3 | 31.88 | 106.0 | 133.0 | 6.10 | |
| C20B-2 | 31.75 | 19.56 | 19.05 | 10.19 | 77.8 | 81.5 | 26.4 | 4.5/3.5 | 36.45 | 170.0 | 211.2 | 8.23 | |
| C24B-2 | 38.1 | 25.40 | 25.40 | 14.63 | 101.7 | 106.2 | 33.2 | 6/4.8 | 48.36 | 280.0 | 319.2 | 14.77 | |
| C28B-2 | 44.45 | 30.99 | 27.94 | 15.9 | 124.6 | 129.1 | 36.7 | 7.5/6 | 59.56 | 360.0 | 406.8 | 19.82 | |
| C32B-2 | 50.8 | 30.99 | 29.21 | 17.81 | 124.6 | 129.6 | 42 | 7/6 | 58.55 | 450.0 | 508.5 | 20.94 | |
| C06B-3 | 9.525 | 5.72 | 6.35 | 3.28 | 33.5 | 34.6 | 8.2 | 1.30 | 10.24 | 24.9 | 30.1 | 1.16 | |
| C08B-3 | 12.7 | 7.75 | 8.51 | 4.45 | 45.1 | 46.1 | 11.8 | 1.60 | 13.92 | 47.5 | 57.8 | 2.10 | |
| C10B-3 | 15.875 | 9.65 | 10.16 | 5.08 | 52.7 | 54.1 | 14.7 | 1.70 | 16.59 | 66.7 | 84.5 | 2.87 | |
| C12B-3 | 19.05 | 11.68 | 12.07 | 5.72 | 61.5 | 64.2 | 16 | 1.8 | 19.46 | 86.7 | 101.8 | 3.89 | |
| C16B-3 | 25.4 | 17.02 | 15.88 | 8.28 | 99.8 | 102.9 | 21 | 4/3 | 31.88 | 160.0 | 203.7 | 9.12 | |
| C20B-3 | 31.75 | 19.56 | 19.05 | 10.19 | 114.2 | 117.9 | 26.4 | 4.5/3.5 | 36.45 | 250.0 | 290.0 | 11.34 | |
| C24B-3 | 38.1 | 25.40 | 25.40 | 14.63 | 150.1 | 154.6 | 33.2 | 6/4.8 | 48.36 | 425.0 | 493.0 | 22.10 | |
| C28B-3 | 44.45 | 30.99 | 27.94 | 15.9 | 184.2 | 188.7 | 36.7 | 7.5/6 | 59.56 | 530.0 | 609.5 | 29.64 | |
| C32B-3 | 50.8 | 30.99 | 29.21 | 17.81 | 183.2 | 188.2 | 42 | 7/6 | 58.55 | 670.0 | 770.5 | 31.27 | |
