Plastic Top Plate Chain

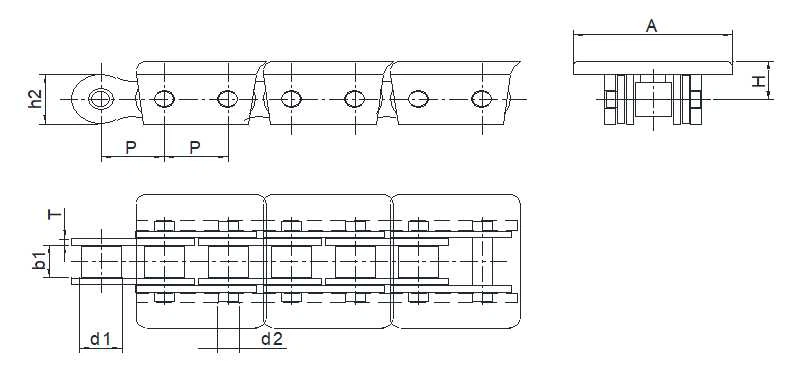

New Ball Chain No.	Pitch	Width between inner plates	Roller diameter	Pin diameter	plastic roof parameter			POM indicates that the plastic plate is made of POM material. PP indicates that the plastic plate is made of PP material. The pin shaft is made of 304 stainless steel. The top plate can be made of antistatic material.
	P	b1	d1	d2	A	H1	H2
	mm
35P-POM/PP	9.525	4.68	5.08	3.58	13	5	4.0
40P-POM/PP	12.7	7.85	7.95	4	20	6.7	6.0
60P-POM/PP	19.05	12.57	11.91	6	30	9	8.0

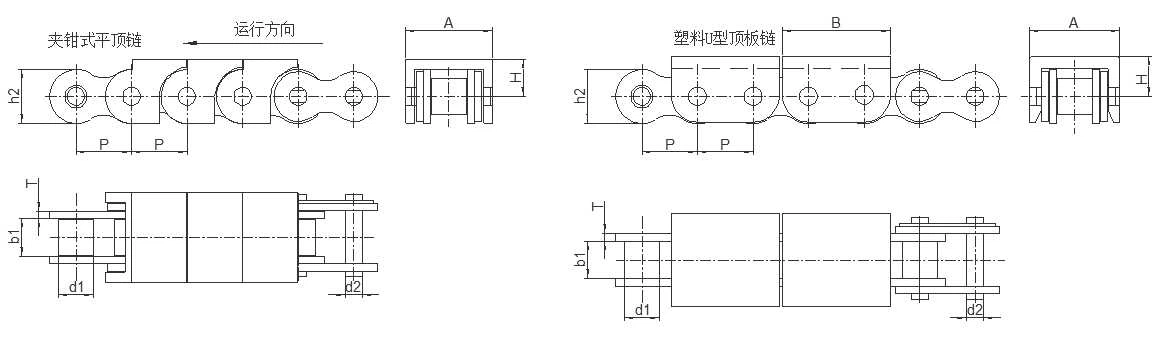

Plastic Snap-on Flat Top Chain



Newball Chain No.	Pitch	Width between inner plates	Roller diameter	Pin diameter	Plat dimension		engineering plastic roof dimension
	P	b1	d1	d2	h2	T	A	B	H
	mm
08A Plastic Snap-on	12.7	7.85	7.95	3.96	12	1.5	20	-	9
12A Plastic Snap-on	19.05	12.57	11.91	5.94	18	2.4	30	-	12.3
12A U-shaped Top Plate	19.05	12.57	11.91	5.94	18	2.4	31	37.0	13.3



843 series snap - on type straight - conveying chain plate

It is mainly suitable for various high-speed linear conveyors and conveyors with large pulling force. The clamp plate is made of POM engineering plastic, and the bottom chain is 08A roller chain, with the material being carbon steel or stainless steel.

Newball Chain No.	Pitch	Width between inner plates	Roller diameter	Pin diameter	Plat dimension		Engineering plastic roof dimension		Reverse bending radius
	P	b1	d1	d2	h2	T	A	H
	mm
843-K138	12.7	7.85	7.95	3.96	12	1.5	34.9	9.1	100
843-K200	12.7	7.85	7.95	3.96	12	1.5	50.8	9.1	100
843-K325	12.7	7.85	7.95	3.96	12	1.5	82.6	9.1	100
